Hire Equipment
Centrifuges
Bird Humbolt CP 5-01
The CP5-01 Centrifuge is the largest high-speed decanting
centrifuge that can be installed in a 20 foot container sized
module. It is manufactured with high strength carbon steel
parts and ceramic protection on the tips of the scroll. The
centrifuge has an 1.1m diameter 3.3m long bowl with
variable speed drive, powered by a 200 kW motor with
inverter control, running on two main bearings with pumped
oil lubrication with forced fan cooling.
Bird Humbolt S1 01
The S1-01 Centrifuge is a high-speed decanting centrifuge The centrifuge ideal for Small TBM / HDD projects or Feasibility Testing for Soils Washing Projects
Separation Plant
Milchem Decline Bed Shaker
The MILCHEM RVS is a single deck, declined bed, orbital motion shaker, used for the primary separation of coarse solids or clay balls. The shaker is fitted with 4 No. hook strip stainless steel woven wire mesh screens. Each screen is 1200x600mm resulting in a screening area of 2400mm long by 1200mm wide. The shaker is normally mounted above a mud storage tank but may be used above an open frame if a suitable pump and pipework is provided for the removal of the screened mud.
De- Sander / De Silter Large Decked Shaker
The SANDMASTER 400 is a high performance desander that consists of two 20 foot container sized modules; the lower pump tank module and the upper shaker/hydrocyclone module. The machine is designed for cleaning drilling muds used for slurry shield tunnelling, directional drilling, diaphragm walling and bentonite piling.
​
.jpg)
_JPG.jpg)

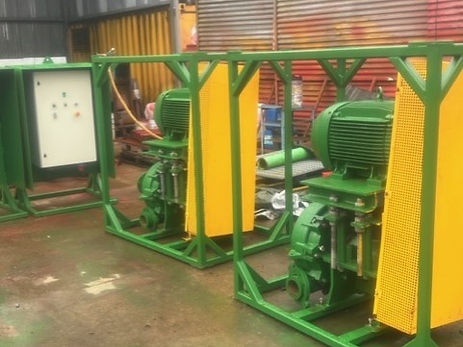

Inverter Controlled Centrifugal Slurry Pumps
2 x Metso HM150 centrifugal with 45kW motors
Invertor controlled peristaltic pumps
We have Bredal SP100, SP50 and SP40 Inverter Controlled available
.png)
Vitolic Pipework and Hoses
800 m of 6 inch grooved vitolic pipe with clamps and flexible hoses in stackable and easy liftable stillages
